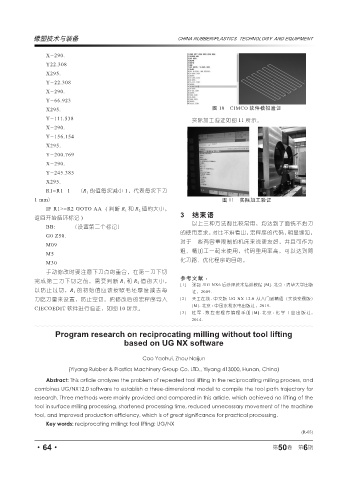

橡塑技术与装备 CHINA RUBBER/PLASTICS TECHNOLOGY AND EQUIPMENT
X-290.
Y22.308
X295.
Y-22.308
X-290.
Y-66.923
X295. 图 10 CIMCO 软件模拟验证
Y-111.538 实际加工验证如图 11 所示。
X-290.
Y-156.154
X295.
Y-200.769
X-290.
Y-245.385
X295.
R1=R1-1 (R 1 的值每次减小 1,代表每次下刀
1 mm) 图 11 实际加工验证
IF R1>=R2 GOTO AA ( 判断 R 1 和 R 2 值的大小,
返回开始循环标记 ) 3 结束语
以上三种方法都比较常用,均达到了面铣不抬刀
BB: (设置第二个标记)
的使用要求,对比不难看出,宏程序的代码,明显缩短,
G0 Z50.
M09 对于一些有容量限制的机床来说更友好,并且可作为
M5 粗、精加工一起来使用,代码重用率高,可以达到简
M30 化刀路、优化程序的目的。
手动修改时要注意下刀点的重合,在第一刀下切
参考文献 :
完成第二刀下切之前,需要判断 R 1 和 R 2 值的大小,
[1] 张磊 .UG NX6 后处理技术培训教程 [M]. 北京 : 清华大学出版
以防止过切,R 1 的初始值应该按照毛坯厚度减去每 社,2009.
刀吃刀量来设置,防止空切。把修改后的宏程序导入 [2] 天工在线 . 中文版 UG NX 12.0 从入门到精通(实战案例版)
[M]. 北京 : 中国水利水电出版社,2019.
CIECOEDIT 软件进行验证,如图 10 所示。
[3] 杜军 . 数控宏程序编程手册 [M]. 北京 : 化学工业出版社,
2014.
Program research on reciprocating milling without tool lifting
based on UG NX software
Cao Yaohui, Zhou Naijun
(Yiyang Rubber & Plastics Machinery Group Co. LTD., Yiyang 413000, Hunan, China)
Abstract: This article analyzes the problem of repeated tool lifting in the reciprocating milling process, and
combines UG/NX12.0 software to establish a three-dimensional model to compile the tool path trajectory for
research. Three methods were mainly provided and compared in this article, which achieved no lifting of the
tool in surface milling processing, shortened processing time, reduced unnecessary movement of the machine
tool, and improved production efficiency, which is of great significance for practical processing.
Key words: reciprocating milling; tool lifting; UG/NX
(R-03)
6
